1995-2005 Dodge, Plymouth & Chrysler PT Cruiser, Neon, Cirrus, Stratus, Acclaim, Spirit, Avenger and other DaimlerChrysler vehicles with the 2.0 or 2.4 engine.

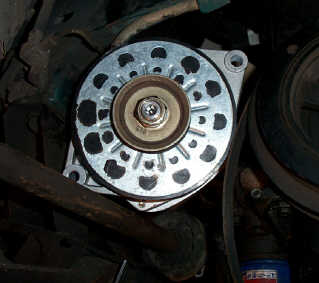

The installation shown below is on the Neon. For other model vehicles listed installation may vary.

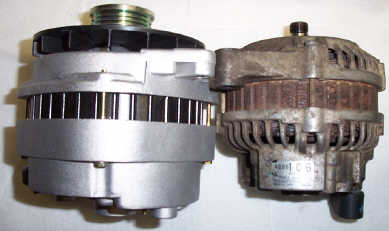

See The Difference.....

Feel The Power!

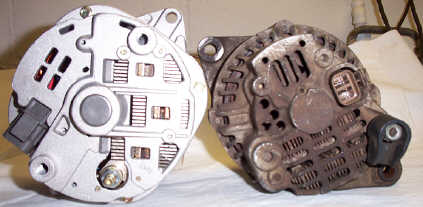

If your stock Mitsubishi alternator has died or can't keep up with your power demands, this is it.....
This bad boy can power a small city!

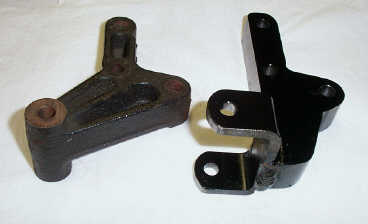

Our Custom Bracket (right) to replace the original lower Alternator bracket (left) makes installation a breeze.

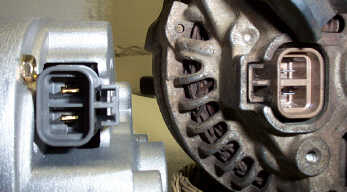

We use an original style connector so you just plug in your existing wiring harness. (1995 year only) For later models with a smaller plug we supply the mating harness for the end we show on the alternator to the left.

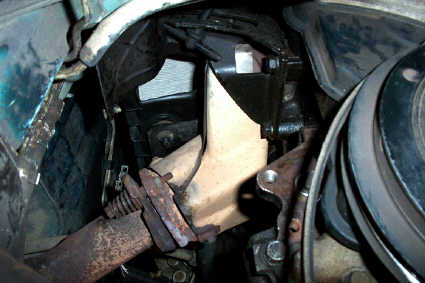

Installation is simple. Just remove your alternator & lower alt. mounting bracket through the passenger side wheel well. Remember to disconnect the battery cables first. (negative cable first)
Remove 2 bolts from passenger side upper motor mount.

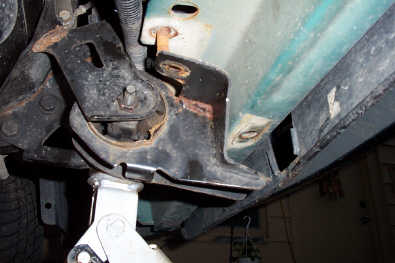

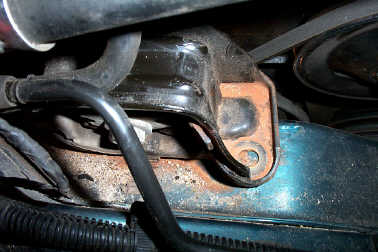

Support with a  jack then remove 2 nuts & 1 bolt from the center front lower engine mount.
Once mounts are loose you must move the motor forward a little and rotate slightly to get the CS-144 alternator in. It's a tight fit, but it does go in.

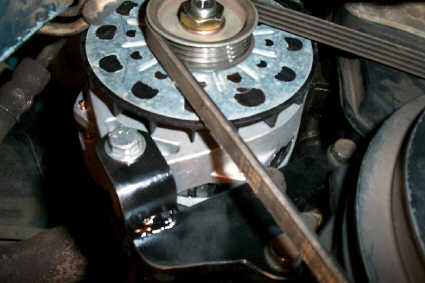

Add a spacer to the upper tensioning bolt for proper belt alignment. Install the new lower alternator mount using the original bolts. Plug in the alternator wiring harness, connect alternator power cable, re-connect the engine mounts. Put the shields back in place, connect battery cables and Crank up the Jams.
