Chevy, Olds, Pontiac, Buick's with Alternator Mounting Style Shown in below in fig.1 & 3 with the following engines, 3100 (3.1L), 3400 (3.4L), 3500 (3.5) and 3800 (3.8L) 3900 (3.9) with the  small case CS130D/AD230/AD237 Alternator. You can now mount the GM Large Case AD244 or the CS144 Heavy Duty Alternators. Replace your small case unit for more power at Idle, greater reliability and more power overall.

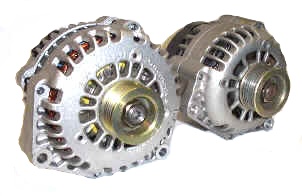

ad230 alternator ad244 alternator and ad230 alternator ad-style bosch alternator
Fig 1 Fig 2 Fig 3

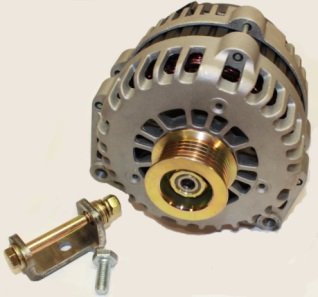

A500 bracket

If your alternator mounting looks like the mounting style in Fig 1. or Fig 3 above you can now install the Larger AD244 series alternator Shown in comparison to the smaller units in Fig 2. The larger AD alternator will give you better high output performance. You can tell this mounting type because the front bolt is parallel to the center rotor shaft and the rear bold goes the other direction and is perpendicular to the rotor shaft. The Larger AD244 series alternator has the two mounting bolts that both go parallel to the center rotor shaft.


U-Bracket featured on this page. Laser-cut for precision, this bracket allows for drop-in replacement of CS130D, AD230, and AD237 alternators that use the side-ways ear mount (shown in the installation below) with CS144 and AD244 alternators utilizing a MODIFIED 2-foot 2-inch mount. The 2-foot 2-inch mount foot closest to the front of the vehicle needs to be cut down about a half inch in the back to fit the vehicle's bracket. Finally you can install our Extreme Duty Dual Rectifier CS144 or the Large Case Heavy Duty AD244 Alternator in your GM Vehicle with the alternator mounting type shown above.


A500 CS130D-AD244 Series Conversion Bracket
add price part # description
$29.95 A500 CS130D, AD230, AD237 Side-Mount to Delco AD244, CS144 2-Foot 2-Inch Mount Conversion Bracket

Make Model Years Engines
Buick Century 99-05 3.1L
Buick Lesabre 00-05 3.8L
Buick Park Avenue 99-02 3.8L
Buick Regal 99-04 3.8L
Buick Skylark 96-98 2.4L
Chevy Cavalier 96-02 2.4L
Chevy Impala 00-08 3.4L, 3.5L, 3.8L, 3.9L
Chevy Lumina 00-01 3.1L
Chevy Malibu 97-05 2.4L, 3.1L, 3.5L, 3.9L
Chevy Monte Carlo 00-07 3.4L, 3.5L, 3.8L
Oldsmobile Achieva 96-98 2.4L
Oldsmobile Alero 99-04 2.4L, 3.4L
Oldsmobile Cutlass 97-99 3.1L
Pontiac Bonneville 00-05 3.8L
Pontiac Grand Am 98-05 2.4L, 3.4L
Pontiac Grand Prix 99-08 3.1L, 3.8L
Pontiac Sunfire 96-02 2.4L

Order the AD244 Series Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles Below

AD244 Series Heavy Duty Alternators
add price part # description
$249.95 AD244145A500 AD244 Series HD145 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles w/ Heavy Duty Bridge Rectifier.
$309.95 AD244145A500Q1 AD244 Series HD145 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles w/ Heavy Duty Bridge Rectifier and Quicktifier 210 Dual Rectifier Kit.
$349.95 AD244145A500Q2 AD244 Series HD145 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles w/ Heavy Duty Bridge Rectifier and Quicktifier 420 Triple Rectifier Kit.
$279.95 AD244170A500 AD244 Series HD170 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles w/ Heavy Duty Bridge Rectifier.
$339.95 AD244170A500Q1 AD244 Series HD170 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles w/ Heavy Duty Bridge Rectifier and Quicktifier 210 Dual Rectifier Kit.
$379.95 AD244170A500Q2 AD244 Series HD170 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles w/ Heavy Duty Bridge Rectifier and Quicktifier 420 Triple Rectifier Kit.
$309.95 AD244200A500 AD244 Series HD200 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles w/ Heavy Duty Bridge Rectifier.
$399.95 AD244200A500Q1 AD244 Series HD200 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles w/ Heavy Duty Bridge Rectifier and Quicktifier 210 Dual Rectifier Kit.
$439.95 AD244200A500Q2 AD244 Series HD200 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles w/ Heavy Duty Bridge Rectifier and Quicktifier 420 Triple Rectifier Kit.
$459.95 AD244250A500Q1 AD244 Series HD250 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles w/ Heavy Duty Bridge Rectifier and Quicktifier 210 Dual Rectifier Kit.
$499.95 AD244250A500Q2 AD244 Series HD250 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles w/ Heavy Duty Bridge Rectifier and Quicktifier 420 Triple Rectifier Kit.
Note: Please provide vehicle year, make, model, engine and specify whether fit is for 2 pin or 4 pin plug on the customer comment page during the order process



If you need more charging power for your 1996 and newer GM vehicle with the V6 3100 (3.1L), 3400 (3.4), 3500 (3.5L), 3800 (3.8L) and 3900 (3.9L) powering the the CS130D, AD230, or AD237 type alternator, like the one shown below. You can now install the MONSTER  type large case alternator in both single and the Extreme Duty Dual Rectifier version or the AD244 Series alternator. Either are the better high output choice over upgrading your existing Alternator.

The installation shown below is on the 1999 Chevy Malibu with the 3100cc\ 3.1 V-6 engine and the Extreme duty CS-144 Dual Rectifier Alternator.


alternator installation
alternator installation

If you have this type alternator on your GM engine you can install up to the 350 amp dual rectifier shown to the right or you can install the AD series which looks more like the original alternator. All you need for this install is the simple "U" bracket shown with the alternator.



Installation below is 2005 Chevy Impala with the 3.5 V6 motor  installing the AD244 200 amp Heavy Duty Alternator


alternator installed
alternator installed

Installation Done…

With this monster installed are you ready……
Call or email to order.
