How to wire the internally Regulated GM Delco-Remy Alternator.
Delco-Remy CS-130 Internally Regulated Alternator Wiring Diagram
GM CS130 Series Internal Regulated Alternator Wiring



Please visit www.pinnaclewindpower.com when you are finished with this site





Wiring instructions for the GM Delco Remy internal regulated cs130 alternator. How to wire a GM cs130 alternator. The GM Delco-Remy cs130 alternator was used on GM vehicles from about 1986-1996. 1995 -1998 was a transitional period for the cs-130. Between those years you may have the CS-130 or the CS-130D alternator. The wiring hookup is the same for the CS-130 and CS-130D alternators. On both the CS-130 and CS-130D alternators must have a resisted ignition wire to the "L" terminal. Resistance can be obtained thru use af a resistor or you can use the no charge light as the resistor, the light bulb will supply proper resistance. Caution: if you connect a full 12 volts to the "L" terminal without the resistor it will cause the voltage regulator to fail

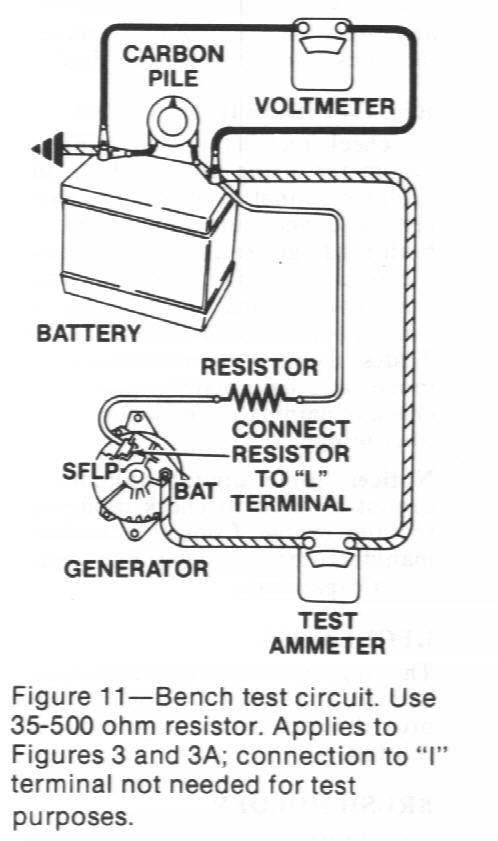

Fig. 11 - CS130 Bench test diagram
